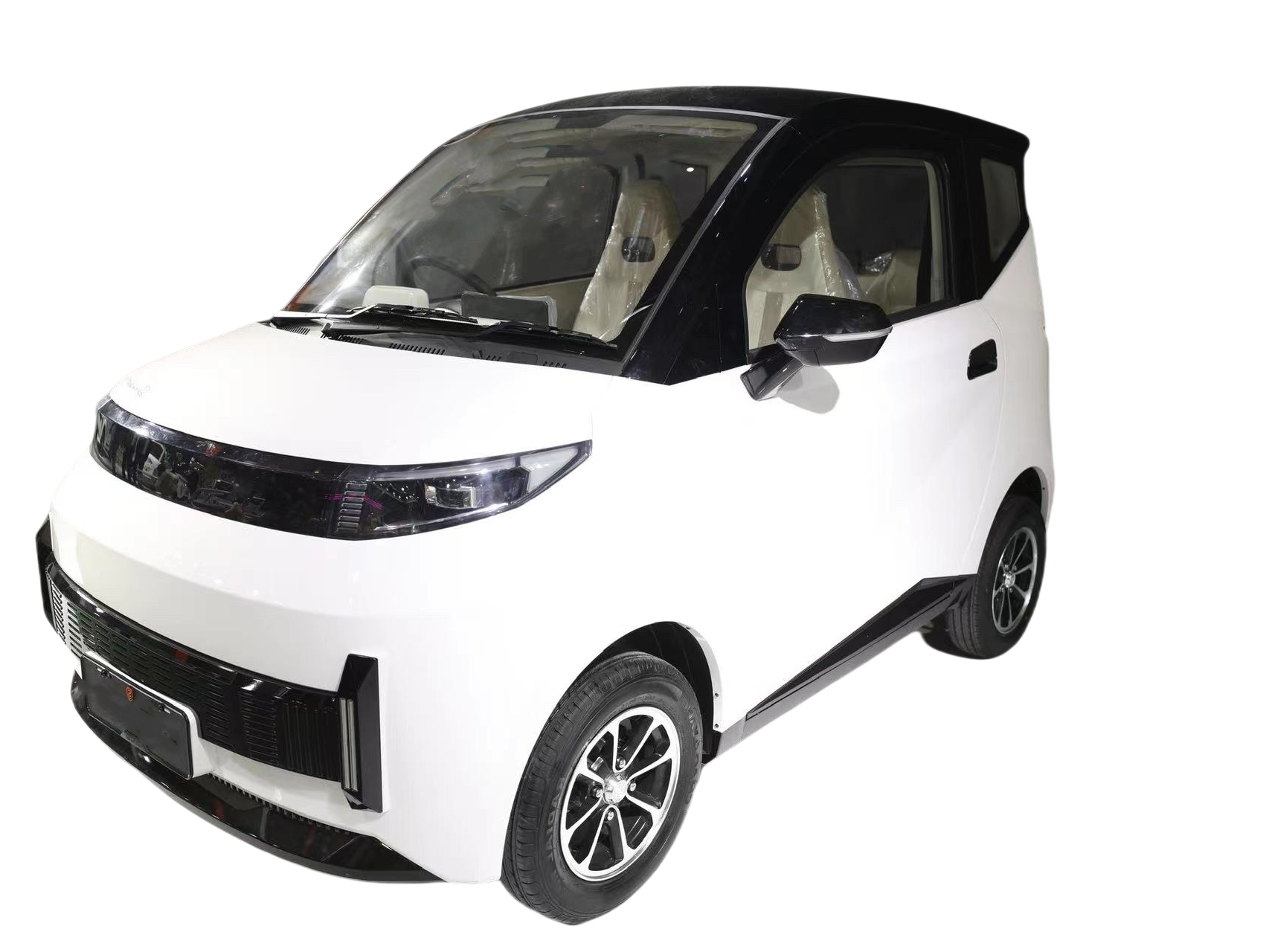

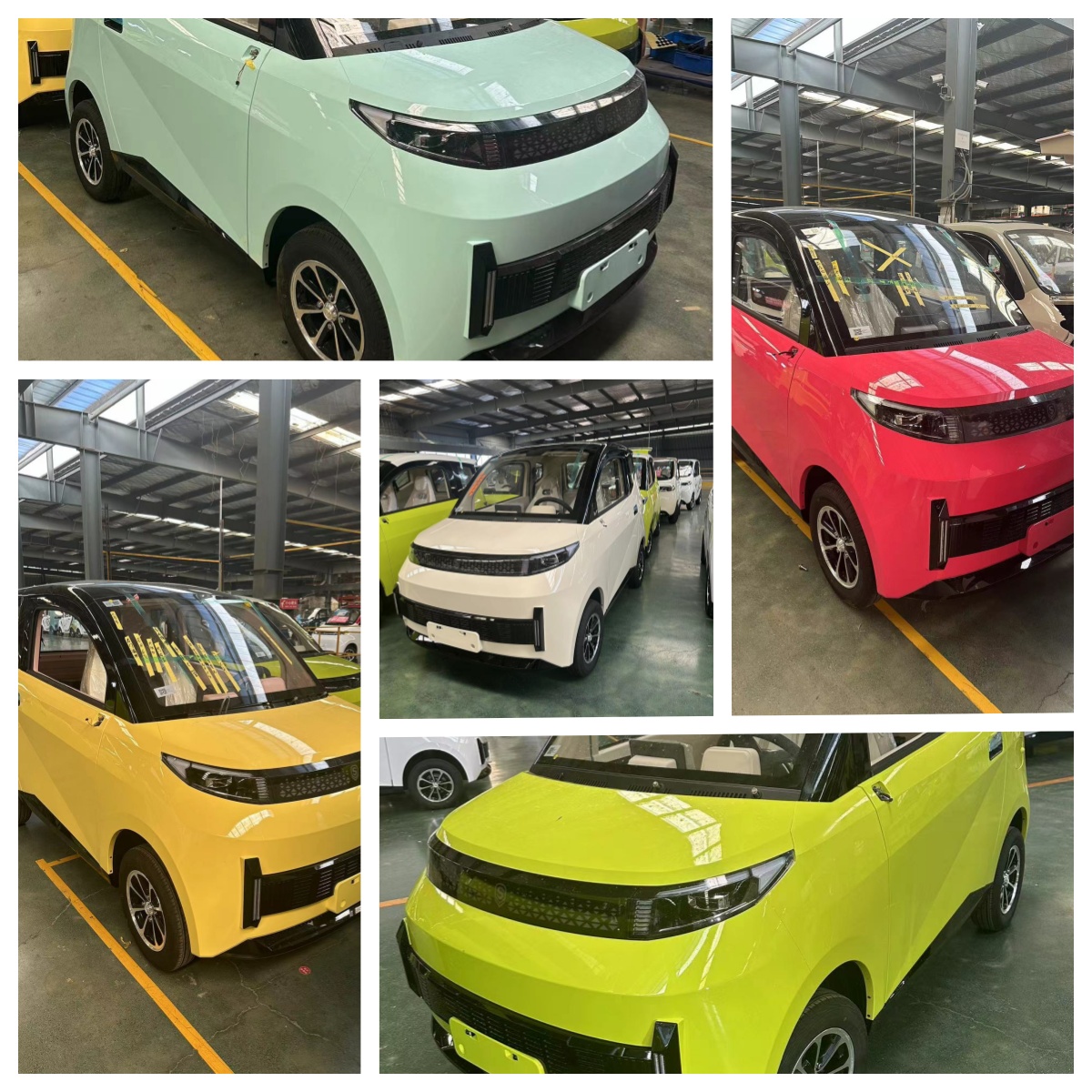

EV2
Description
EV2
Technical Specifications
📋 Parameter
L × W × H (mm)2865 × 1480 × 1610
Wheel Base (mm)1780
Capacity (Person)4
F / R Wheel Tread (mm)1310 / 1340
Weight Capacity (kg)450
Min. Ground Clearance (mm)150
Steering ModeLeft steering
⚡ Power System
Motor72V 4000W
Battery72V 100Ah LiFePO4 Battery
ChargerBuilt-in Charger
Charging Time7–8 hrs (220V)
Max Speed45 km/h
Range110 km
Climbing Ability25%
Controller30 Tube
Differential Ratio10 : 1
🚀 Performance
Minimum Turning Radius3 m
Climbing Ability25%
MAX Torque (N·m)750
🛑 Brake System
TypeHydraulic System
FrontDisc
RearDisc
🔄 Suspension System
FrontMacPherson Suspension Structure
RearIntegrated Rear Axle
🚗 Wheel System
TyreFront: 145/70-12 | Rear: 145/70-12
Wheel RimAluminum Rim

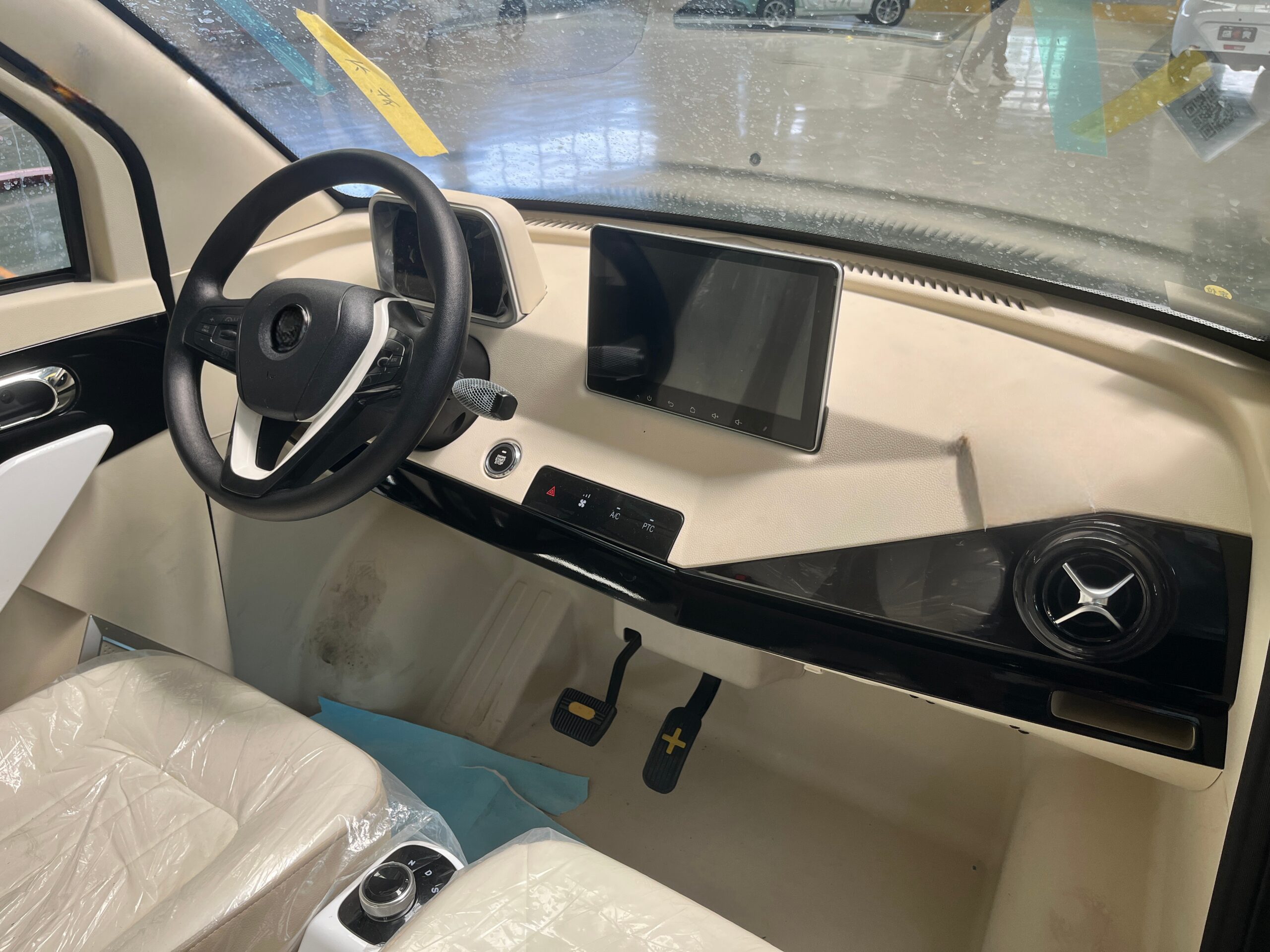

🎛️ Function Device
MultimediaRadio / Reverse Camera / USB
Air ConditionerOption

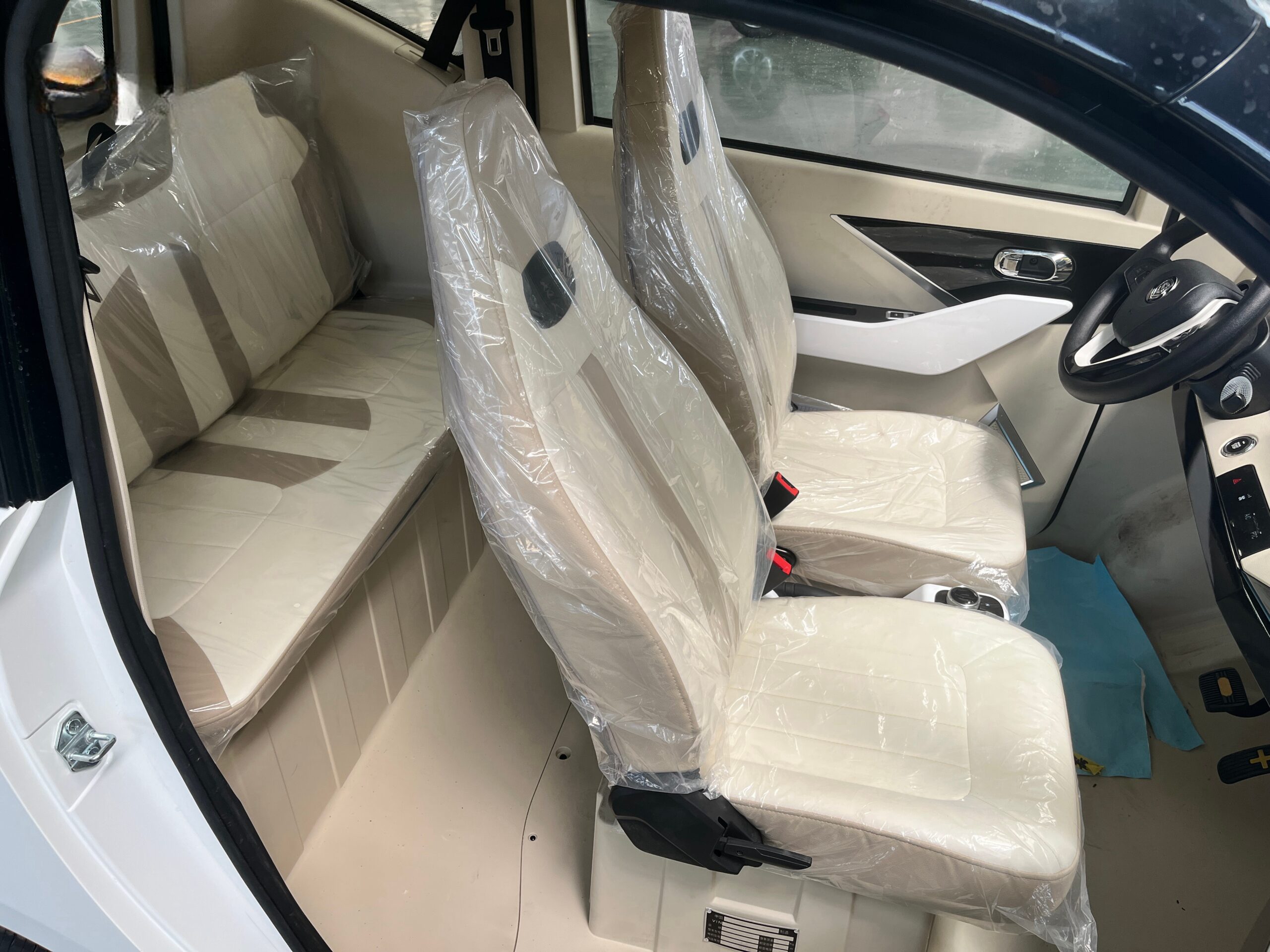

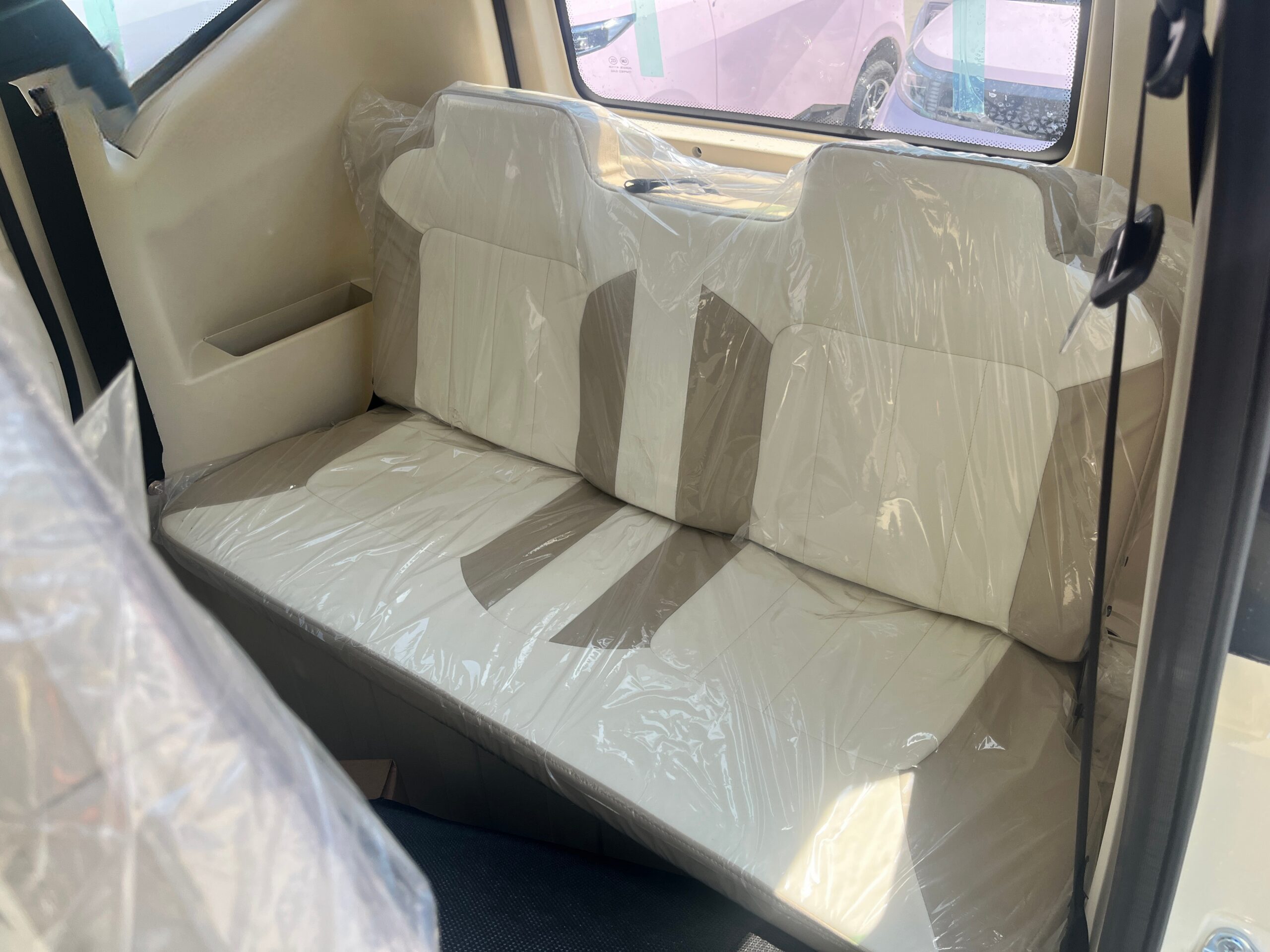

Leather Seats●
Heater●
Central Lock●
Brake Assist●

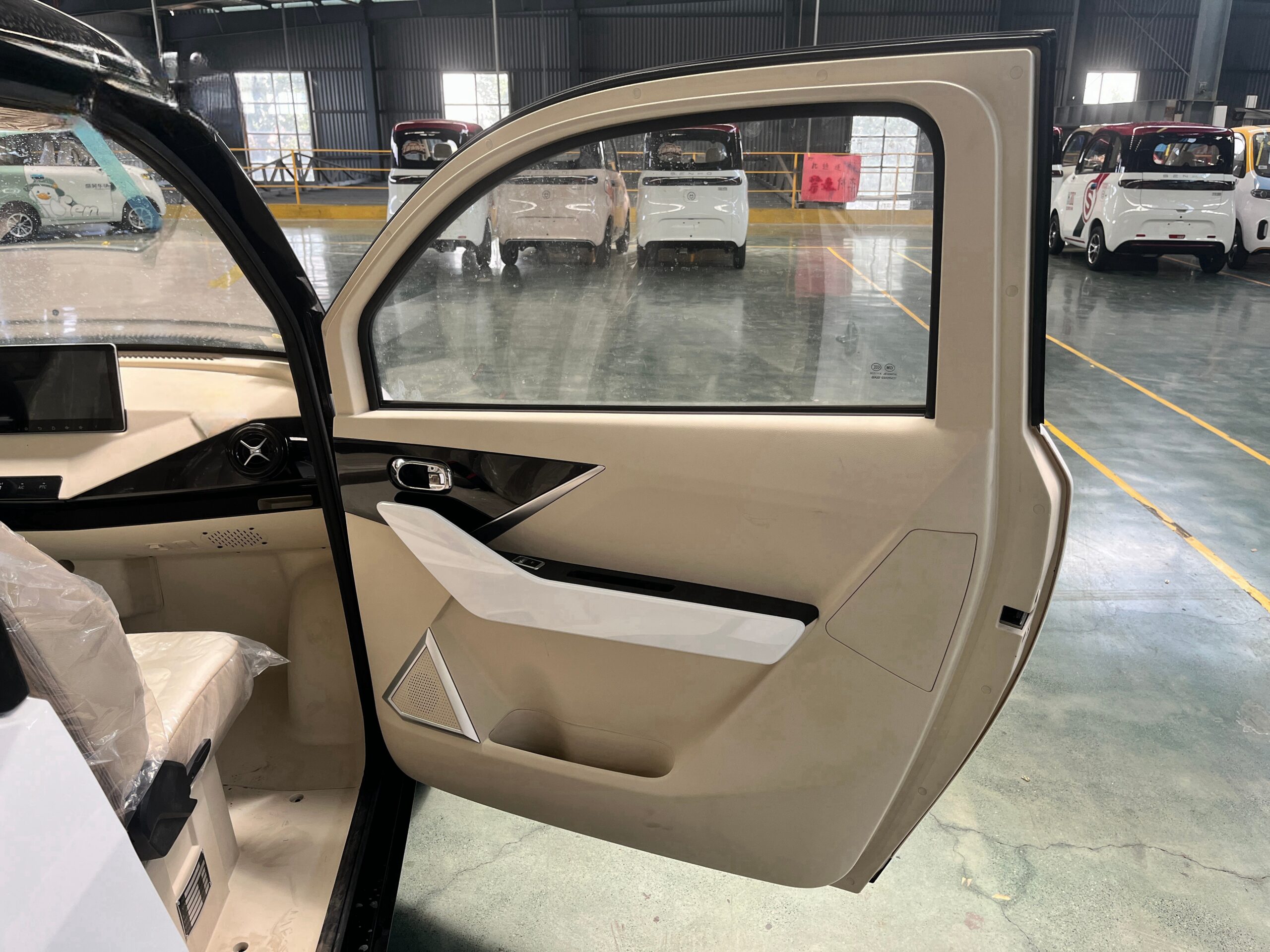

Electric Window●
Screen●
Safety Belt●
