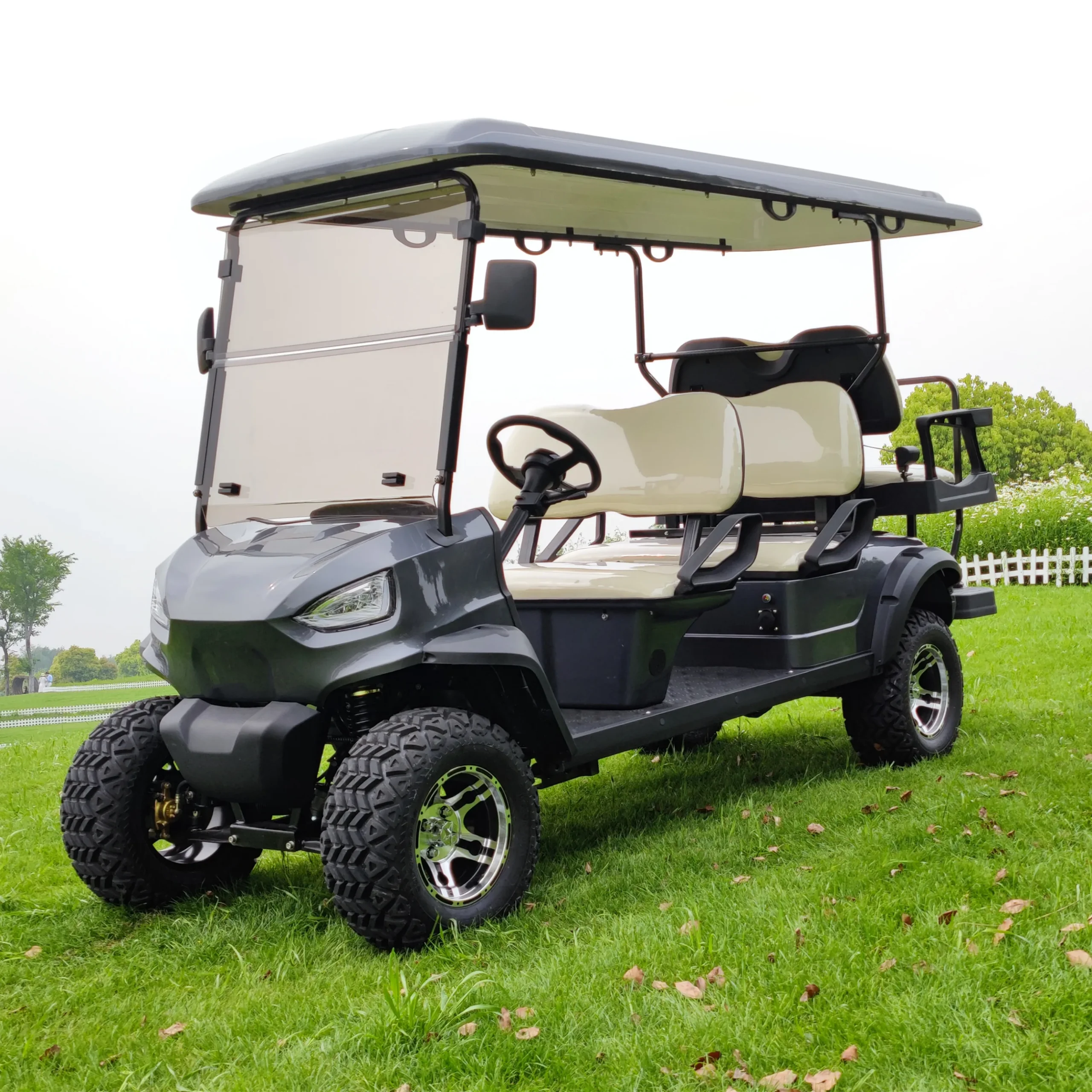

F4GH42A 4+2

Description

F4GH22A2+2

Technical Specifications

Key Components

Battery (3 years warranty) 72V115AH Lithium Battery
Motor 5KW AC Motor / 7.5KW AC Motor
Controller China local brand AC controller / SME Controller

Performance

Passenger capacity 4
Range (loaded) on flat road @ 20km/h >110 km
Max. speed 32km/h (adjustable)
Minimum turning radius (m) 3.5
Max. climbing ability (loaded) 25% / 30%
Max. movement after brake @ 20km/h ≤4m
Max. loading weight 320kgs
Net weight 510kgs / 520kgs

Dimensions

Overall dimensions (mm) 2850x1340x2000
Min. ground clearance (mm) 170
Wheel base (mm) 1880
Front wheel tread (mm) 850
Rear wheel tread (mm) 975

Body and Frame

Frame Welded steel framework (galvanization and powder coating)
Body PP plastic front body + PP plastic rear body
Roof PP injection (Black) or vacuum plastic
Windshield Organic glass (hinged) / Laminated / Laminated with wiper
Seat belt 2-point / 3-point
Brush guard / Basket Carbon steel, powder coating (Front/Top)
Backrest and cushion Rebond seat + artificial leather / 2-TONE / Diamond pattern
Backrest cover Wood finish or carbon fibre finish style
Floor Rubber
Dashboard Black plastic / Wood finish / Carbon fibre finish
Steering wheel Wood finish style
Beverage holders 4 cups drink holders
Glove box Included (Lockable: Black/Wood/Carbon)
Side trim Plastic
Mirrors Inner (1pc) + Side (2pcs, optional LED)
Enclosure Included

Electric system

Lighting system and horn All LED (Headlights, Turn signals, Taillights), Horn, DC-DC Converter
Reversing alarm Included
Digital Meter Speed, mileage, headlight/turn/reverse indicators
USB / Power USB 5V, 12V Accessory Plug
EM Brake Included
Multi-Media Player 10′ LED touch screen, Bluetooth, MP3, Radio, SD, USB, 2 Speakers
Backup Camera Connected to screen
Solar Panel 72V/300W
Charger China origin, Input 110V-240V~50Hz-60Hz, output 72V, 15A onboard

Steering and Suspension

Steering system Single-stage rack and pinion, automatic rocker compensating
Brake system 4-wheel hydraulic (Front disc/Rear drum) + Hand brake
Accelerator Stepless speed change
Suspension system Front independent and rear plate spring + vibration absorber
Driving mode Rear axle two stage deceleration, motor direct driving
Rear axle Integrated, Gear ratio 12.49:1
Wheel & Tyre 12×7 Aluminum + 23″ Tire / 14×7 Aluminum + 23″ Tire
